High Fall Air Bags built from the most durable, tear resistant, lightweight fabric available.

Fabricated with superior design innovations such as a 6,000 lbf test air baffle venting system and a unique patented no-skid impact area which holds the body on top regardless of off-center impact.

Quick set-up, inflation and roll up times. Web handles provide ease of positioning, movement and anchoring. Color fade and cold temperature resistant.

In testing performed by SEACORP, the superior design withstood the impact from 750 lb torpedoes at speeds up to 58 mph.

Used in a variety of specialized applications for film stunt work, live shows, fire and rescue teams and high-end technical research, the High Fall Air Bag design has received the highest overall ratings for safety, durability and ease of use.

Winner of the 2006 Academy Award for 'Technical Achievement' and the 2008 Academy Of Television Arts And Sciences Prime Time Emmy Award for 'Engineering'.

Available in stock sizes and colors or custom size, shape, color and custom printed logo.

prices subject to updates unless pre-paid. Contact AD for current prices


Click image for closeup viewClick image for close-up.

High Fall Air Mattress Model 50High Fall Air Bag Model 50
  • dimensions 10ft x 14ft x 5ft  (3m x 4.2m x 1.5m)
  • single fan 110v / 60 Hz (european or asian voltage available at no extra cost)
  • inflation time 48 seconds
  • re-inflation time 15 seconds
  • fall rating 50ft (15.2m)
  • weight 175 lbs (79.4kg) with fan
model 50   $7,400.00
Contact AD to order


High Fall Air Mattress Model 60 High Fall Air Bag Model 60
  • dimensions 12ft x 16ft x 6ft  (3.6m x 4.6m x 1.8m)
  • single fan 110v / 60 Hz (european or asian voltage available at no extra cost)
  • inflation time 60 seconds
  • re-inflation time
    seconds
  • fall rating 60ft (18.2m)
  • weight 250 lbs (81.6kg) with fan
model 60   $7,900.00
Contact AD to order

High Fall Air Mattress Model 70 High Fall Air Bag Model 70
  • dimensions 15ft x 20ft x 7ft  (4.5m x 6m x 2.1m)
  • double fan 110v / 60 Hz (european or asian voltage available at no extra cost)
  • inflation time 74 seconds
  • re-inflation time 25 seconds
  • fall rating 70ft (21m)
  • weight 300 lbs (102kg) with two fans
model 70   $9,400.00
Contact AD to order

High Fall Air Mattress Model 100 High Fall Air Bag Model 100
  • dimensions 20ft x 25ft x 10ft  (6m x 7.6m x 3m)
  • double fan 110v / 60 Hz (european or asian voltage available at no extra cost)
  • inflation time 85 seconds
  • re-inflation time 30 seconds
  • fall rating 100ft (30m)
  • weight 500 lbs (124.7kg) with two fans
model 100  $10,400.00
Contact AD to order

High Fall Air Mattress Model 150 High Fall Air Bag Model 150
  • dimensions 25ft x 30ft x 15ft (7.6m x 9.1m x 4.5m)
  • double fan 110v / 60 Hz (european or asian voltage available at no extra cost)
  • inflation time 90 seconds
  • re-inflation time 35 seconds
  • fall rating 150ft (45.7m)
  • weight 750 lbs (170kg) with two fans
model 150  $14,400.00
Contact AD to order


High Fall Air Mattress Model 250 High Fall Air Bag Model 250
  • dimensions 40ft x 50ft x 20ft  (12.1m x 15.2m x 6m)
  • double fan 110v / 60 Hz (european or asian voltage available at no extra cost)
  • inflation time 100 seconds
  • re-inflation time 40 seconds
  • fall rating 250ft (76.2m)
  • weight 1,500 lbs (680kg) with two fans
model 250  $32,200.00
Contact AD to order

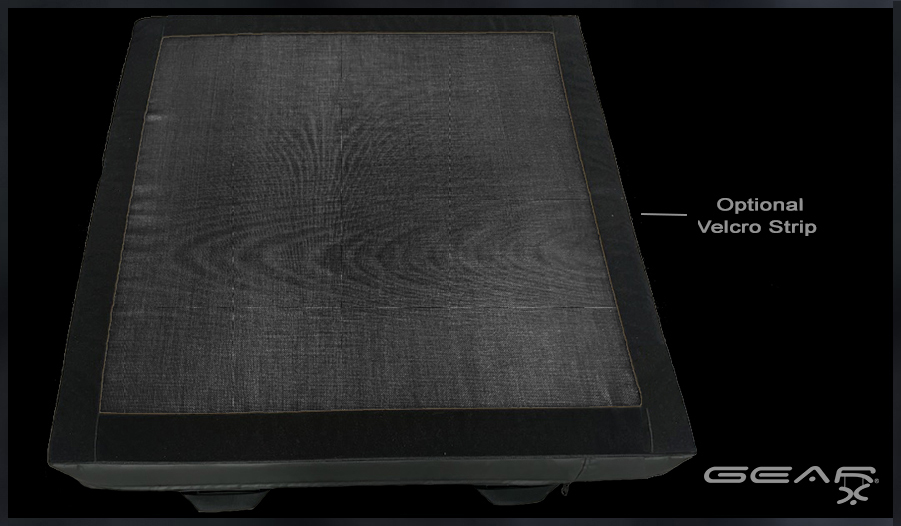

Low Fall Mini Air BagsLow Fall Mini Air Bags

  • supports up to 200 lb jumper
  • envelopes the body to prevent bounce and off center slide-off
  • standard size fall rating 25ft (7.6m)
  • dimensions 6ft x 10ft x 3.5ft  (1.8m x 3.3m x 1m)
  • single fan 110v / 60 Hz (european or asian voltage available at no extra cost)
  • 2-4 person set up
  • inflation time under 30 seconds
  • re-inflation time under 30 seconds
standard mini bag  $2,800.00

  • precision size fall rating 15ft (4.5m)
  • dimensions 6' x 8' x 3'  (1.8m x 2.3m x .9m)
  • single fan 110v / 60 Hz (european or asian voltage available at no extra cost)
  • 1-2 person set up
  • inflation time under 30 seconds
  • re-inflation time under 30 seconds
precision mini bag  $2,700.00

custom sizes available
Contact AD for quote



Dual Piston Air Ram Dual Piston Air Ram
  • smooth, progressive, low impact
  • immediate lift on contact with no delay
  • forward momentum does not throw performer back in either shallow or deep hits
  • high end, low power allows stronger toss with minumal pressure
  • includes hard shell carrying case
  • 60 psi produces 28 ft vertically x 40 ft distance
  • 10 psi produces 8 ft vertically x 10 ft distance
  • compressed air tanks not included
PDPAR includes firing unit  $13,400.00
without firing unit  $5,400.00
custom built air rams available
Contact AD to order

Air Ratchet Air Ratchet
  • works with in-out / push-pull method allowing both forward and backward momentum
  • along with custom firing unit, the two work in tandem to provide smooth, progressive lift off with vitually no shock
  • distributes maximum air force with minimal psi
  • includes hard shell carrying case
  • compressed air tanks not included
4ft stroke / 3 way valve   $7,400.00
4ft stroke / 3 way valve without firing unit  $2,900.00

6ft stroke / 3 way valve   $8,400.00
6ft stroke / 3 way valve without firing unit  $3,900.00

8ft stroke / 3 way valve   $9,400.00
8ft stroke / 3 way valve without firing unit  $4,900.00
Contact AD to order


Men's Jerk Suit Men's Jerk Suit
  • the optimum solution for ratchet jerks
  • stirrups are available

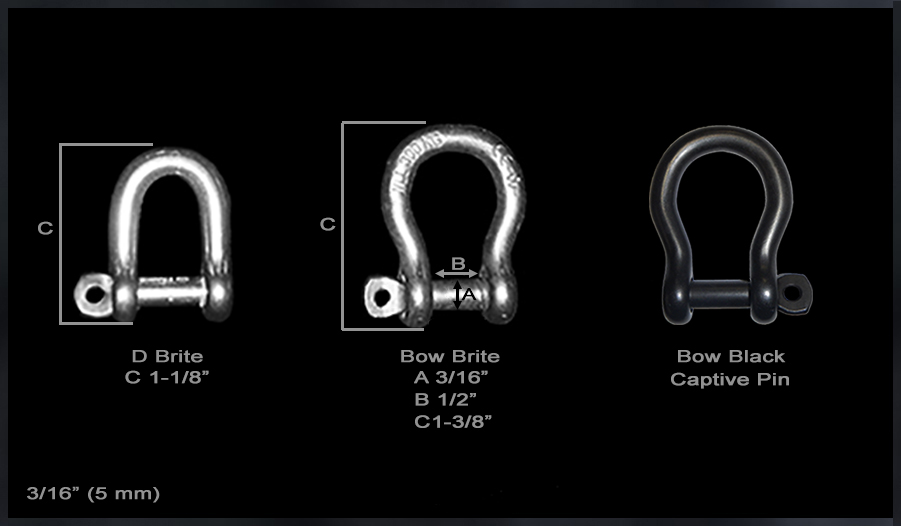

  • loops are provided to attach stirrups with shackles
JS0100  $650.00
Please fill in measurement form for exact fit
AD will email an invoice for your order
custom sewn to spec / non-refundable
allow 7-10 business days for shipping

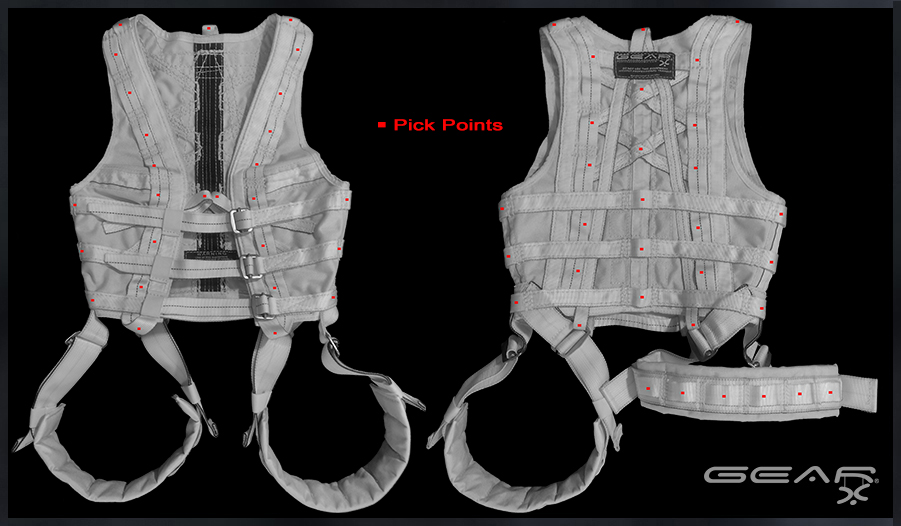

Women's Jerk Vest Women's Jerk Vest
  • designed for the women’s figure
  • same styling of pick points as the men’s Jerk Vest
  • over the bust style and shorter length allows more leg mobility than full jerk suit
  • padded leg straps
  • available in black or white
JV0200P $585.00
Please fill in measurement form for exact fit
AD will email an invoice for your order
custom sewn to spec / non-refundable
allow 7-10 business days for shipping

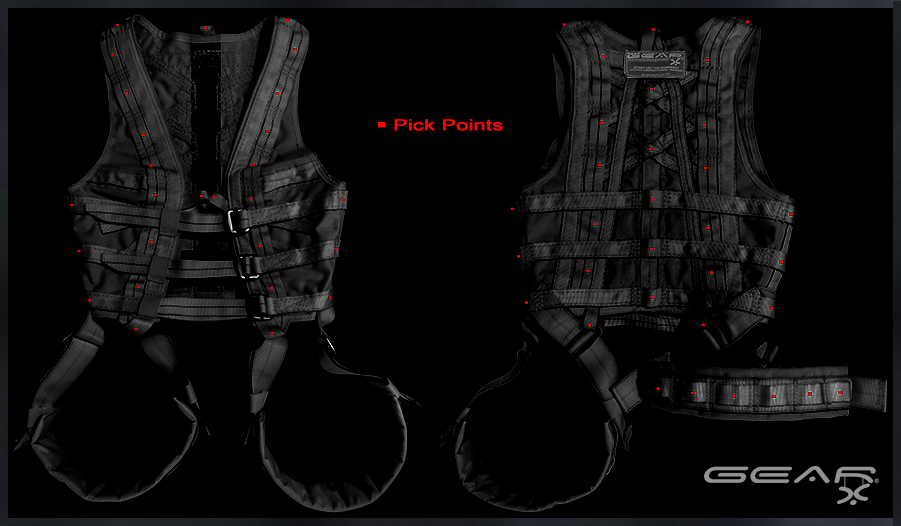

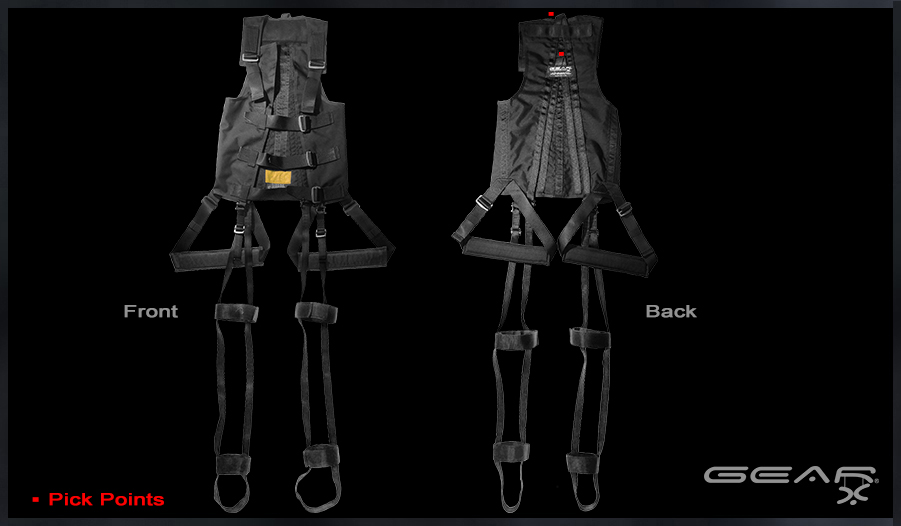

Men's Jerk Vest Men's Jerk Vest
  • three designs - standard, 2 1/2" shorter version and light weight design
  • shorter and light weight allow more leg mobility than full jerk suit
  • sliding leg pads
  • 16 basic pick points
  • available in black or white]
JV0100PNS  $530.00
Please fill in measurement form for exact fit
AD will email an invoice for your order
custom sewn to spec / non-refundable
allow 7-10 business days for shipping


Mini 3-Hole Fly Harness Mini 3-Hole Fly Harness
  • manufactured in the usa
  • smallest flying harness available
  • adjustable from 24"- 36" (61cm - 91cm) waist
  • pick points are 3-hole adjustable to adjust the center of gravity
  • padded leg straps
  • povisions to add shoulder straps and or stirrups
  • allows fee leg mobility
  • available in black or white
FH0102M   $989.00
ustom sewn to spec / non-refundable
allow 7-10 business days for shipping


Full Body Fly Harness Full Body Fly Harness
  • 1 dorsal D ring pick point
  • 2 shoulder D ring pick points
  • 2 hip D ring pick points
  • 6 additional webbing pick point straps
  • can be customized to suit individual specs
sizing: measure from top of shoulder down the side to the level of the navel - include measurement and the approximate weight of the user in "notes" section of checkout page when ordering.
weight tolerance can be plus or minus 20 lbs.
Full Body Harness Measurement
FBH100P   $275.00
custom sewn to spec / non-refundable
allow 7-10 business days for shipping

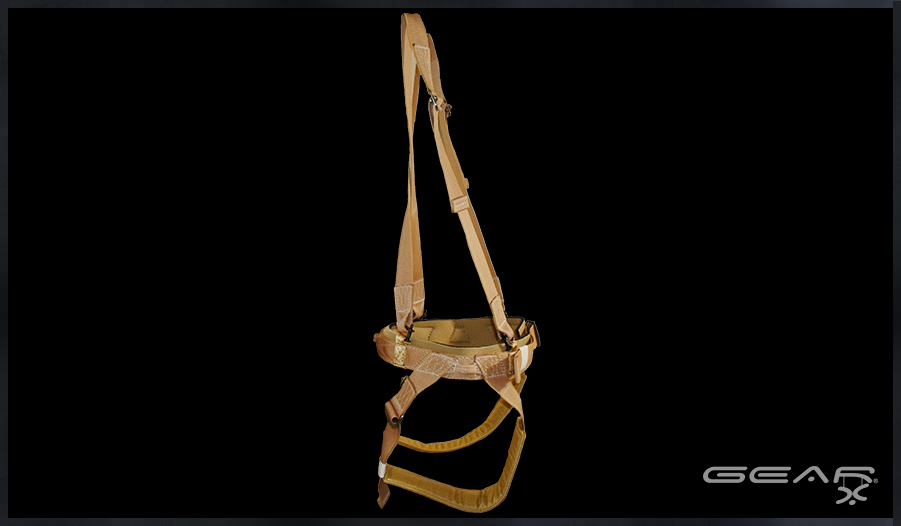

Hip Pick Fly Harness With Webbing Pick Loops Hip Pick Fly Harness With Webbing Pick Loops
  • 3 web pick point has 2 side webbing pick pointsand 1 rear webbing pick point
  • shackles not included
  • single adjuster
  • 2 web pick point has 2 side webbing pick points
  • shackles not included
  • adjustable legs and waist from 24" - 40" (61 cm - 104 cm)
  • can be worn reversed with adjusters in back
SG1024P 3 pick points  $215.00
SH1015P 2 pick points  $210.00
for 3 pick point, measure waist at naval line and distance from center of side around to the back- include measurement in "notes" section of checkout page when ordering
custom sewn to spec / non-refundable
allow 7-10 business days for shipping

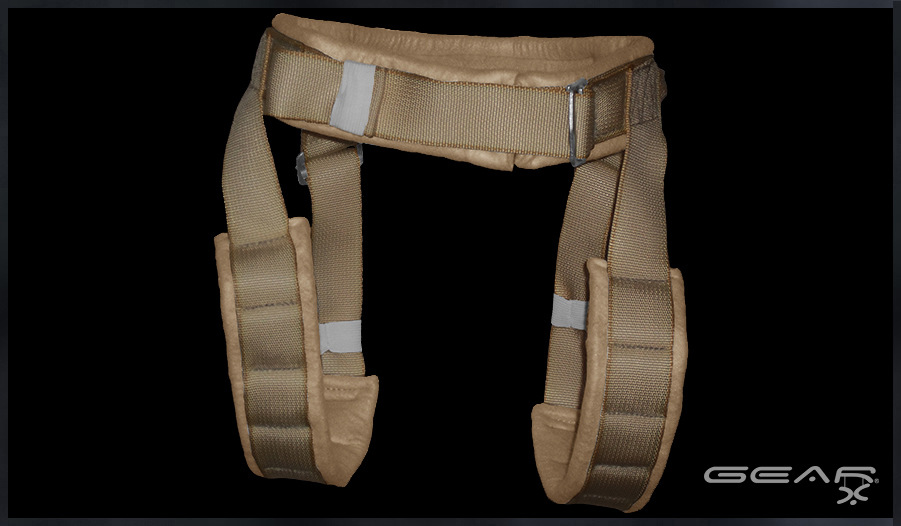

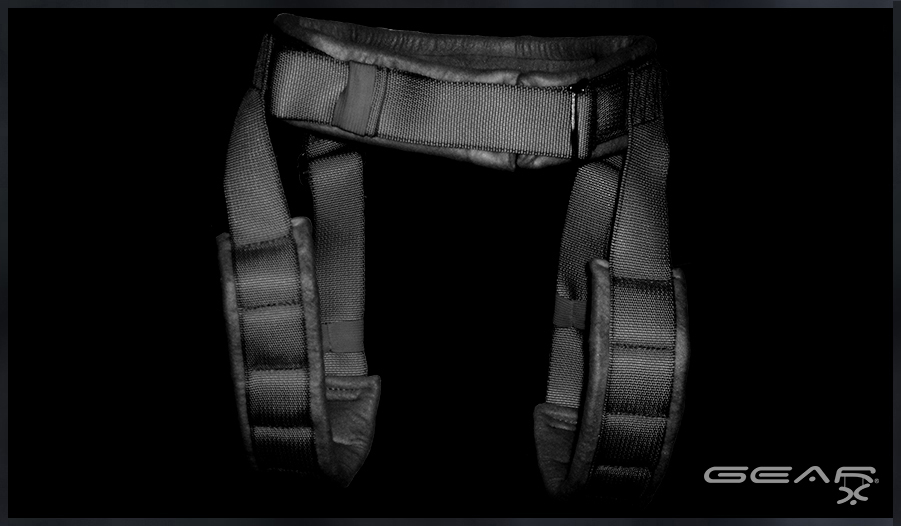

Hip Pick Fly Harness With Steel Pick Rings Hip Pick Fly Harness With Steel Pick Rings
  • manufactured in the usa
  • adjustable waist and legs from 24" - 40" (61 cm - 104 cm)
  • steel O ring hip pick points
  • ideal for bungee trampoline or cable flying
  • custom child's version available - include hips and waist measurements in "notes" section of checkout page when ordering
SH1012P  $213.00
custom sewn to spec / non-refundable
allow 7-10 business days for shipping



Nomex Fire Clothing Nomex Fire Clothing
  • fire resistant long john used with protective gel
  • NFPA Compliant to 1971-2000 standard
  • available in S, M, L
top or bottom  $125.00 each


PBI / Nomex / Carbon Fiber Fire Resistant Hoods PBI / Nomex  / Carbon Fiber Fire Resistant Hoods
PBI Fire Hood
  • Meets and Exceeds NFPA 1971-2000 Edition
  • Complies with OSHA and CAL-OSHA Requirements
  • TPP Rating 31.1
  • TPP Rating 40.0 after Five Washings
  • Maximum Protection Under Fire
  • Seamless Chin Area
  • Rib Knit Fabric Construction Stretches and Recovers 35% Better than Typical Hood Fabrics
  • Excellent Stretch and Recovery Properties
  • Outer Shell is a PBI/Lensing Material
  • Lining is a Blend of Nomex/Lensing Comfort Plus Liner
  • Easy Donning and Snug Fit Around Face Opening
  • Flat-Stitched Seams For Comfort-ability
  • Sewn With 100% Nomex Thread
  • Tan Color
20PBI 20" (51 cm) white $48.50

Nomex Fire Hood
  • Sock style hood provides the wearer with added protection from flash fire hazards.
  • 2-ply construction adds thermal insulation in cold weather.
  • Blended Nomex/Lenzing FR material provides excellent “wicking” of excess moisture - ensuring added comfort to the wearer
  • Tunneled elastic face opening - 1/2” elastic is encased in fabric to ensure snug and durable fit, especially when donning SCBA mask.
  • Hood is 20” (51 cm) or 23" (58 cm) total length - front and back- with a back gusset that allows it to lay flat around the neck
  • Flatlock seams are all sewn with 100% Nomex thread. Hood is NFPA Compliant to 1971-2000 Standard for Structural Fire Fighting. One Size Fits All
  • NFPA Compliant to 1971-2000 Standard for Structural Fire Fighting
  • One Size Fits All
20NB 20" (51 cm) white  $36.50
20NB 20" (51 cm) red  $49.50
23NB 23" (58 cm) black  $46.50

Carbon Fiber Fire Hood
  • Features waffle-weave construction and has a back gusset that allows it to lay flat around the neck for greater comfort
  • Blended material is 50% Carbon / 40% Technora / 10% Black P-84
  • Carbon Fiber is Proven Lightweight and provides Excellent Fire Resistance
  • Technora adds Strength, Durability, and helps hood Retain Its Shape when Laundered
  • Black P-84 provides Comfort and Warmth during cold weather and also aids in “Wicking” Away Moisture in Hot and Humid Weather
  • New Technology "Waffle-Weave" Material Boasts Excellent Breathability and comfort
  • Tunneled Elastic Face Opening - 1/2” Elastic is Encased in Fabric to Ensure Snug and Durable Dit, especially When Wearing SCBA Mask
  • Flared Neck Design with the Gusset Provides the Best Combination of Protection, Comfort and Mobility
  • Flat Sewn, not “Waffle-Weave” with Flatlock Seams for Added Strength and Extra Comfort
  • Total Length of Hood is 20 inches
  • NFPA Compliant to 1971-2000 Standard for Structural Fire Fighting
  • One Size Fits All
20CK 20" (51 cm) Black   $52.75
23CK 23" (58 cm) Black   $64.95


Kynol Fire Resistant Gloves Kynol Fire Resistant Gloves
  • manufactured in the usa
  • excellent long-burn, high temperature resistance
  • GL1002   $52.00
Contact AD for details on special pricing


Nomex Fire Resistant Socks Nomex Fire Resistant Socks
  • sewn with 100% Nomex thread
  • NFPA Compliant to 1971-2000 standard
  • one size
NMXSX $30.00 / pair


Fire Protectant Gel Fire Protectant Gel
  • thermal protective hydrogel when used properly will absorb heat and offer a level of protection from thermal exposure
  • developed for use by trained and experienced Stunt and Special Effects professionals to increase their exposure time to elevated thermal environments
  • can be applied directly to the skin and can be used to saturate a protective under layer for body burns
  • opaque white - can be tinted with water based make up to achieve any skin tone desired
  • can be used at package consistency and at room temperature - refrigeration recommended prior to use for greater thermal absorption
  • similar reactivity as water and can be transported by all methods of shipment
  • five year shelf life in its original unopened container
  • does not require refrigerated storage
  • bacteriostatic
  • non-irritating
  • non-staining, removes easily with water from skin, hair and clothing
  • sold for professional use - waiver of liability required prior to shipment
1 gallon (3.8 litres) $185.00
5 gallons (18.9 litres) $525.00
Special Offer! Purchase 5 gallons (18.9 litres) at regular price, get 5 gallons (18.9 litres) for $425.00!
Contact AD for details


Back to top

Home
