Carabiners, screw links, ladder hooks

Carabiners

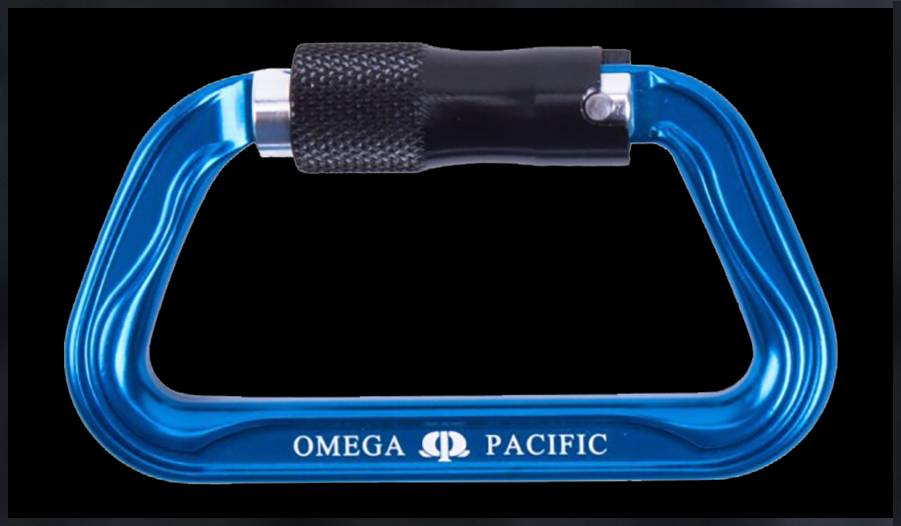

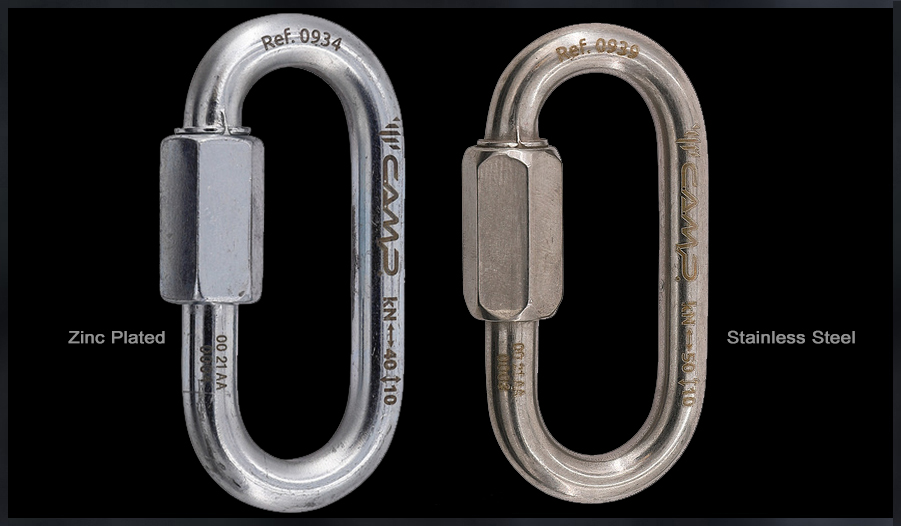

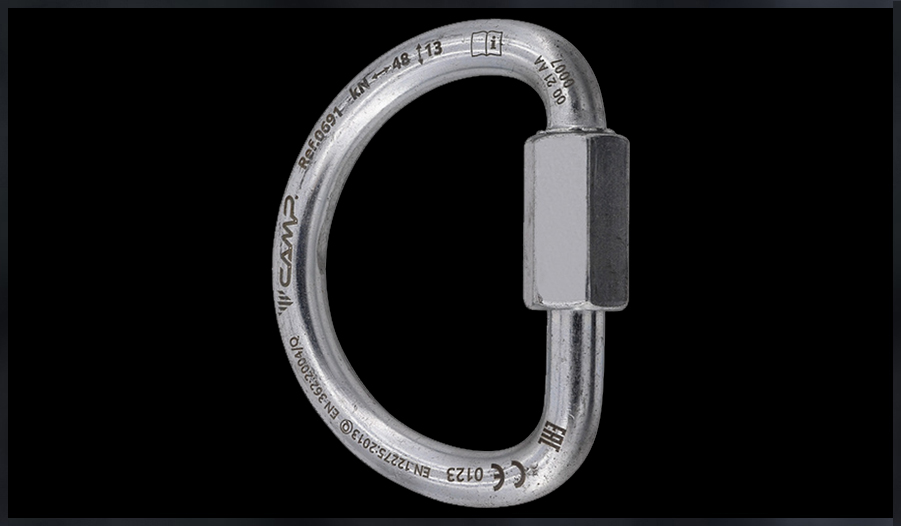

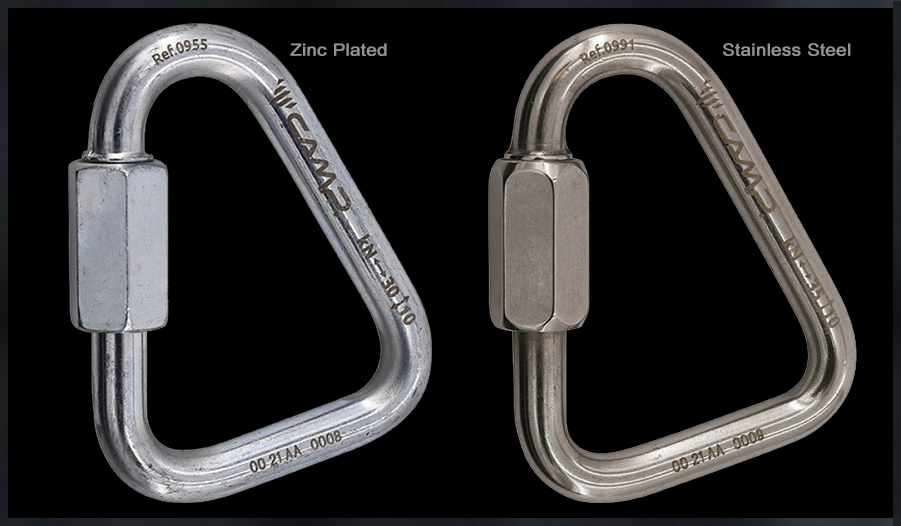

Screw Links Ladder Hooks SMC Petzl Petzl / Rock Exotica Omega Pacific Sterling PMI

Don't see a particular model or style? Contact AD for availability.

Please read our Warranty And Return Policy upon ordering

Click image for close-up

SMC Steel Carabiners

manufactured in the usa
designed for the fire, rescue and industrial communities
large gate opening to fit over most litter rails
sleeve locks on the gate - not on the body
stainless steel gates and locking sleeves

21001-21007 breaking strength 11,590 lbf (51.5 kN)
gate opening 1.2" (30.4 mm)
dimensions 5.04" (128 mm) x 2.97" (75 mm)
10.6 oz (301 g)

21501 breaking strength 10,341 lbf (46 kN)
gate opening 1.15" (29 mm)
dimensions 5.04" (128 mm) x 2.97" (75 mm)
twisting auto double lock
11.4 oz. (323 g)
ANSI Z359.1

20003NFPA breaking strength 12,139 lbf. (54 kN)
gate opening 1.45” (36.8 mm)
dimensions 5.7” (144.7 mm) x 3.5” (89 mm)
Xlarge offset D shape fits over standard 1.25" ladder rung
12.2 oz. (346 g)

21001 brite steel $31.95
21001 NFPA brite steel $32.90

21007 NFPA black steel $37.10
21501 brite steel $50.20
20003 NFPA brite steel $38.95

SMC NFPA Locking D Aluminum Rescue Carabiners

manufactured in the usa
NFPA version of popular aluminum locking D carabiner
offset locking carabiner offering high-strength and reliability
the knob locks on the gate not on the carabiner frame to prevent jamming when loaded
using a stainless steel gate and sleeve insures a lifetime of smooth action and trouble-free service
components of this carabiner are meticulously hand-finished after machining
smooth, free gate action that is the hallmark of all SMC carabiners
100% hand-inspected for gate action and other functional characteristics before leaving our factory
bright, red (anodized frame with Bright gate) and black (frame/gate) for tactical applications
third party tested (by Underwriters Laboratories - UL) as required by NFPA 1983 (2001 edition) standards

NFPA rating 'L'
gate opening .82” (20.8mm)
outside length 4.37” (111mm)
outside width 2.56” (65mm)
braking strength 6,070 lbf. (27kN)
weight 2.6 oz. (74g)

NFPA 18501 brite $18.85
NFPA 18502 black $21.20
NFPA 18505 red $21.20
Click for non-NFPA version

SMC Standard Lite D Aluminum Carabiners

manufactured in the usa
strong, basic and lightweight aluminum
low profile tabs for easy clipping

1700 series breaking strength 5316 lbf (20kN)
gate opening .74" (18.7mm)
dimensions 3.96" (100.5mm) x 2.21" (56mm)
1.7 oz (48g)

1800 series breaking strength 6592 lbf (29kN)
gate opening .95" (24mm)
dimensions 4.37" (111mm) x -2.56" (65mm)
2.6oz (74g)

17001 brite $ 10.00
black / purple / orange / red $12.50

18001 brite $12.80
black, purple, orange, red $16.50

SMC Lite Steel Carabiner

manufactured in the usa
dualguard version is a two-stage auto-lock that is easy to operate with one hand
release the gate to automatically close and lock
6.6 oz (187g)
BS 10,341 lbf. ( 46kN)
NFPA ''G'' General Use 40kN

triguard version incorporates a new style of internal mechanism
gate and sleeve are constructed of non-corrosive stainless steel
smoother and more reliable action
three-stage auto-lock that operates with ease
one-handed pull, twist and open motions directed towards your body
no fumbling awkward movements away from your body
6.6 oz (187g)
BS 10,341 lbf. (46kN)

NFPA102200 dualguard $37.20
NFPA102300 triguard $37.20

SMC Lite Steel Zinc / Stainless Carabiner

manufactured in the usa
approximately half the weight of SMC large steel carabiner and three ounces heavier than the SMC aluminum locking D
popular in cave and mountain rescue applications
comparable to most steel carabiners without the extra weight and bulk
tested at up to 10,000 lbs
offset ''D'' shape provides ample volume to clip in large diameter ropes and smooth transfer of the Munter Hitch in belaying
heat-treated steel
UL tested NFPA 1983 (2001 edition) standard
bright or tactical black

NFPA 100001 brite $32.45
NFPA 100007 black $35.30
gate opening .94” (23.8 mm)
outside length 4.52” (114.8 mm)
outside width 2.76” (70 mm)
breaking strength 10,341 lbf (46 kN)
6.6 oz (188 g)

non-NFPA 100007 black $46.35
gate opening .94” (23.8 mm)
outside length 4.48” (113.7 mm)
outside width 2.70” (68.5 mm)
breaking strength 7,419 lbf (33 kN)
5.8 oz (164 g)

non-NFPA 100003 stainless steel $39.85
gate opening .94” (23.8 mm)
outside length 4.48” (113.7 mm)
outside width 2.70” (68.5 mm)
breaking strength 7,418 lbf (33 kN)
6 oz (170 g)

Lite Stainless Steel Locking Carabiner is identical to our NFPA Lite Alloy Steel 'biner except for its stainless steel construction
perfect for situations where high strength, durability, size and weight are a consideration
corrosion resistant
approximately half the weight of SMC Large Steel Carabiner and three ounces heavier than the SMC Aluminum Locking D
offset ''D'' shape provides ample volume to clip in large diameter ropes and smooth transfer of the Munter Hitch in belaying

non-NFPA 100003 stainless steel $39.85
gate opening .94” (23.8 mm)
outside length 4.48” (113.7 mm)
outside width 2.70” (68.5 mm)
breaking strength 7,419 lbf (33 kN)
5.8 oz (164 g)

SMC NFPA / ANSI FP Lite Alloy Carabiner

manufactured in the usa
specifically designed for fall protection
features an auto-locking 1" gate opening
gate breaking strength of 3600 lbf. (16 kN)
total MBS of 7000 lbf. (31 kN)
8.9 oz. (254 g)
NFPA102100 dualguard
compliant with the new ANSI Z359.1 2007

102100 $28.60

SMC Kinetic Aluminum Carabiners

manufactured in the usa
specifically designed to meet personal protection requirements
key lock nose

screw locking gate
gate opening 1" (25 mm)
outside length 4.57" (116 mm)
outside width2.85" (72.3 mm)
breaking strength 6,295 lbf. 28 kN)
2.8 oz (79 g)
certified NFPA 1983-06
black or blue

dual locking gate
gate opening 0.98" (24.9 mm)
outside length 4.57" (116 mm)
outside width 2.85" (72.3 mm)
breaking strength 6,295 lbf. 28 kN)
3.2 oz (90.7 g)
certified NFPA 1983-06
black or blue

SM10300N screw lock blue $17.00
SM103007N screw lock black $17.00
SM10310N dual lock blue $19.00
SM10317N dual lock black $19.00

SMC Crossover Carabiners

manufacturted in the usa
the only aluminum carabiners meeting both the NFPA G-Rating 1983 (06) and ANSI Z359.1, 2007 strength requirements.
dual-Lock and triple-Lock feature the ANSI Z359.1, 2007 gate strength requirement of 16 kN making this the ideal choice for industrial operations.
ergonomic single hand frame geometry which allows for easy single handed opening
available in screw lock (non-ANSI), dual lock and triple lock

screw lock
5.1 oz (145 g)
MBS: 40 kN (8,992 lbf)
SM205500N pewter $30.00
SM205507N black $30.00

dual lock
5.5 oz (156 g)
MBS: 40 kN (8,992 lbf)
SM205600N pewter $34.00
SM205607N black $34.00

triple lock
5.5 oz (156 g)
MBS: 40 kN (8,992 lbf)
SM205600N pewter $34.00
SM205607N black $34.00

SMC Original Oval Carabiner

manufactured in the usa
1960's classic oval carabiners are difficult to load incorrectly
non-locking forces are equalized
breaking strength 5086 lbf (22.6 kN)
gate opening .71" (18mm)
dimensions 4.26" (108mm) x 2.21" (56mm)
2.2 oz (63g)

19001 brite $7.55
19002 black $9.25

Petzl Caritool

manufactured in france
a simple tool holder designed to organize gear attached to a harness
small tools can be arranged and accessed with one hand
attaches to the webbing of a harness waist belt
small hole at the top for attaching a keeper cord, to help prevent dropping critical gear
durable and lightweight
carries the weight of gear up to 11 lbs (5 kg) on the small and 33 lbs (15 kg) on the large
not a load bearing device

P42 small $6.95
P42 large $15.95

Petzl M15 Spirit Straight Gate Carabiner

manufactured in france
straight gate for the anchor end of a quickdraw
lightweight
optimum strength to weight ratio
anodized for better corrosion resistance
keylock system (snag-free body / gate interface)
certification CE / UIAA
23 kN BS long axis
0 kN BS short axis
10 kN BS open gate
1.7 oz. (49 g.)

M15 $9.95

Petzl M10 Spirit Bent Gate Carabiner

manufactured in france
bent gate for the rope end of a quickdraw
ergonomic shape to facilitate clipping the rope
lightweight
optimum strength to weight ratio
anodized for better corrosion resistance
keylock system (snag-free body / gate interface)
certification CE / UIAA
23 kN BS long axis
10 kN BS short axis
9.5 kN BS open gate
1.2 oz. (46 g.)

M10 $9.95

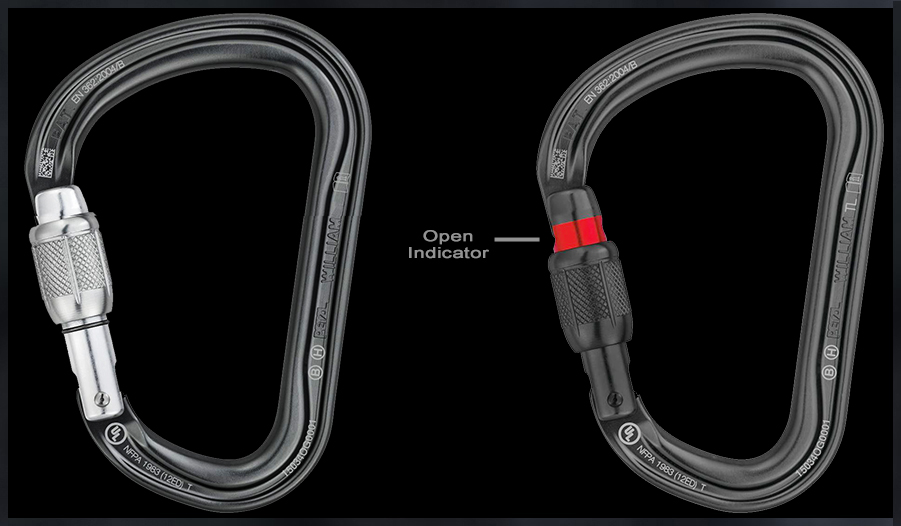

Petzl William Carabiners

manufactured in the usa
CE / UIAA specs
6294 lbf (25 kN) breaking strength
dimensions 4.6" (11.7mm) x 3.1" (7.9mm)
M36SL screw lock gate opening 1" (25mm)
M36BL ball lock & M36TL triple lock gate opening .94" (24mm)
3.1 oz (90g)

M36SL screw lock $13.95
M36SLN screw lock black $14.95
M36BL ball lock $17.95
M36TL triple lock $17.95
M36TLN triple lock black $18.95

Petzl / Rock Exotica Carabiners

manufactured in the usa
designed for demanding conditions of construction and rescue
wide opening allows hook-up to ladder rungs, other metalic object
hot forged high quality steel
strong, durable"unlock" red visual indicator
gate opening 1' (25mm)
dimensions 5" (125mm ) x 2.9" (74mm)
breaking strength 9217 lbf (41 kN)
M31 SL screw lock simplifies manual locking with one hand
9.9 oz (280 g)
NFPA

M32 TL trilock easy to operate while wearing gloves
two movement unlock
10.7 oz (303 g)
NFPA

M31SL $30.95
M31SLN black $33.95
M31TL $34.95
M31TLN black $37.95

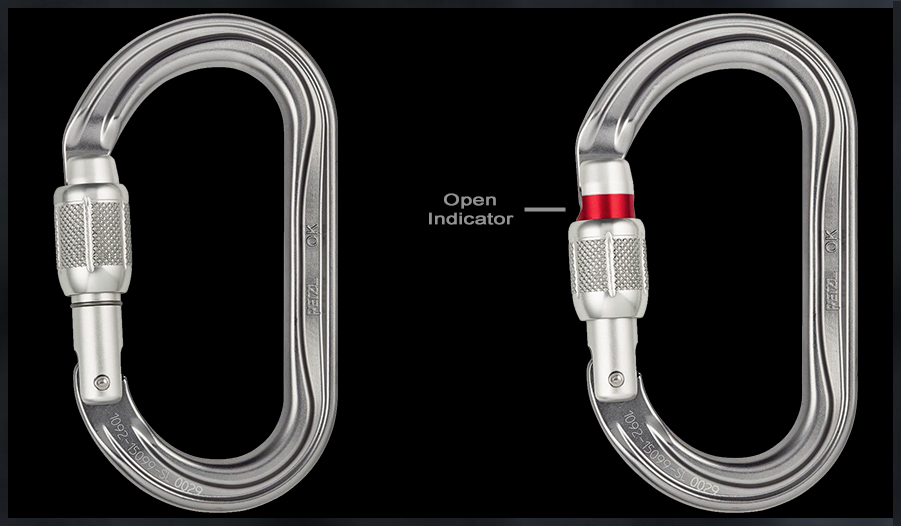

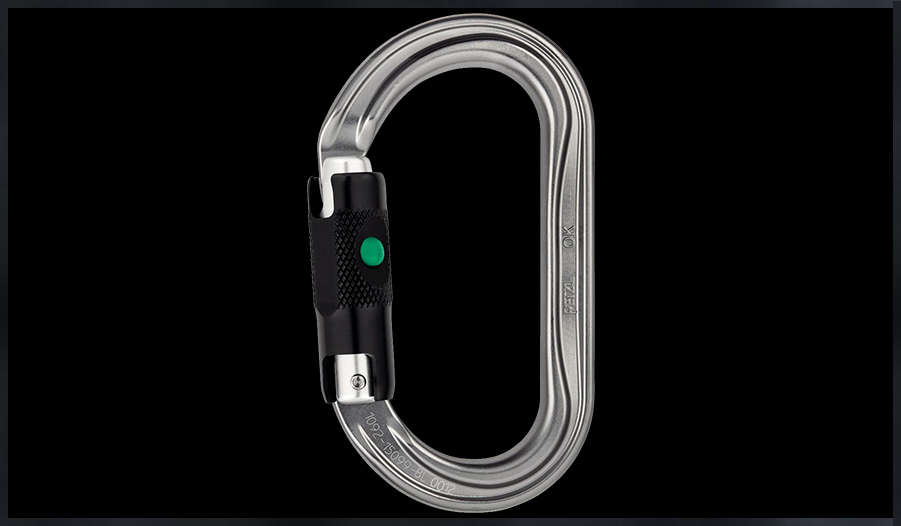

Petzl M33 OK Triact Locking Aluminum Oval Carabiners

manufactured in france
for use with pulleys and hauling systems
facilitates pulley use
ideal for clipping anchors (easy to flip over)
compact shape
easy to use with one hand
keylock system (snag-free body / gate interface)
5,395 lbf. (24 kN)
2.6 oz (75g)
M33TL requires 3 actions to open

M33SL $15.95
M33TL $21.95

Petzl Freino Carabiner

manufactured in france
unique spur for added friction and control with some descenders
insert rope into spur without opening carabiner
twist lock automatic sleeve
breaking strength 5620 lbf (25 kN)
3 oz (85 g)

M42 $44.95

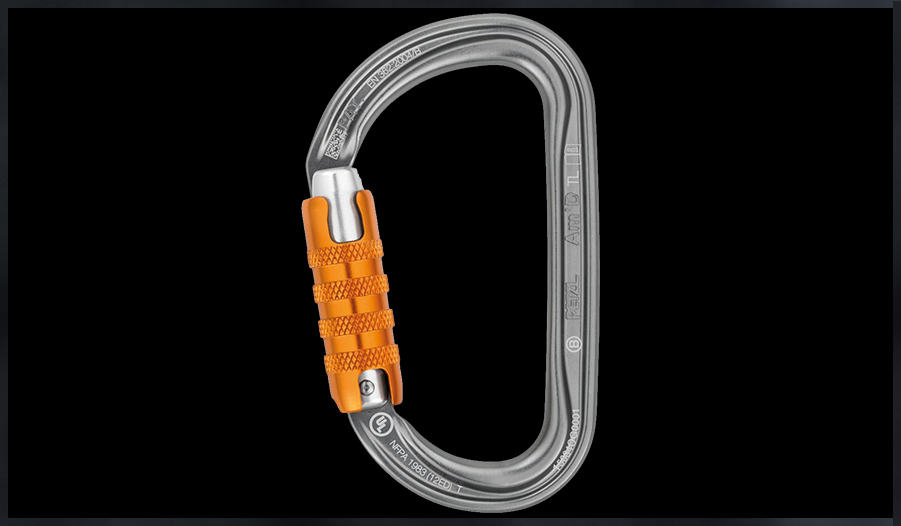

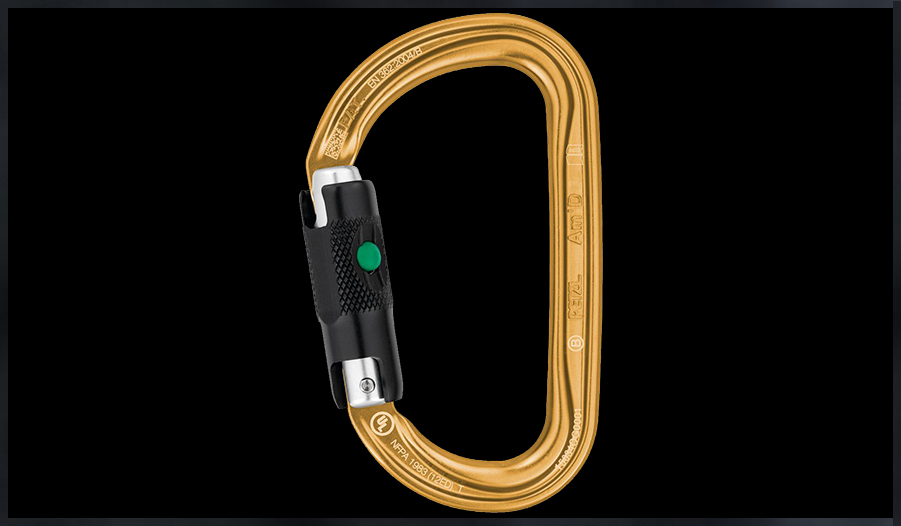

Petzl Am'D Carbiners

manufactured in france
versatilemultipurpose
asymmetrical shape for exceptional strength to weight ratio
automatically orients to optimal working axis when loaded
snag free key lock gate
M34 SL screw lock & M34 TL triact lock gate opening .82" (21mm)
M34 BL ball lock gate opening .86" (22mm)
breaking strength 6294 lbf (28 kN)
dimensions 4,375" (111mm) x 2.5" (63mm)

M34 SL $12.95

M34SLN black $14.95

M34 BL $18.95
M34 TL $18.95
M34TLN black $19.95

Petzl Pear Carabiner

manufactured in france
compact pear-shaped carabiner
lightweight and easy to handle
shape facilitates use with the Munter hitch for single ropes
2.8 oz (80 g)

M35SL $12.95

Petzl Oxan Triple Lock Oval Steel Carabiner

manufactured in france
high quality steel for difficult conditions
keylock system helps prevent snagging of the carabiner during maneuvers
triple locking gate for additional safety
gate opening .0826" (21mm)
breaking strength 6,069 lbf (27 kN) vertical / 3,596 lbf (16 kN) side-to-side / 1,578 lbf (7 kN) open
NFPA 1983-06 L
weight 7.5 oz (215 g)

M72TLA $22.95

Petzl Vulcan Triple Lock Steel D Carabiner

manufactured in france
high quality steel for difficult conditions for use with heavy loads
large size allows easier connection of multiple elements
texture of the locking sleeve facilitates locking and unlocking the carabiner
wide opening for connection to thick anchors
keylock system helps prevent snagging of the carabiner during maneuvers
gate requires 3 separate actions to open for added security
gate opening 1.18" (3cm)
breaking strength 8,992 lbf (40 kN) vertical / 3,596 lbf (16 kN) side-to-side / 3,596 lbf (11 kN) open
NFPA 1983-06 G
10.05 oz. (285 g)
gold or black

M73TLX $37.95

Petzl M73 Kador Fire Personnel Carabiner

manufactured in the uk
steel double auto locking gate sleeve
CE / UIAA labeled .9” ( 23.9 mm)
gate opening for ladder hook-on
8992 lbf ( 40 kN) breaking strength
dimensions 4.75" (120mm) x 3.12" (79mm)
10 oz (283 g)

M73 $44.95

Omega Pacific Non-Locking Carabiners

manufactured in the usa
ISO cold forged fabricatring process offers hot forged strength at less cost
lightweight, low profile, state-of-the-art
each carabiner proof tested to 50% rated strength

B1 brite $7.15
B1 black $9.20

gate opening .7" (20 mm)
dimensions 4.28" (108.7 mm) x 2.39" (60.7 mm)
breaking strength 6970 lbf (31 kN)
2.2 oz (65 g)

B3 brite $6.50
B3B black $9.50

gate opening .6" (16 mm)
dimensions 4.24" (107.7 mm) x 2.27" (57.7 mm)
breaking strength 4940 lbf (22 kN)
2.2 oz (65 g)

Omega Pacific Rescue Lite Carabiners

manufactured in the usa
aircraft aluminum alloy modified D
internal locking threads eliminate rope wear
available in screwgate, quicklock or triple lock
each carabiner proof tested to 50% rated strength
UL classified to meet NFPA 1983.06

B2 brite $10.50
B2B black $13.95

screw gate opening .511" (13 mm)
dimensions 4.22" (107.2 mm) x 2.2" (55.9 mm)
breaking strength 6070 lbf (27 kN) NFPA L
2.6 oz (74 g)

B5 brite $20.25
B5B black $24.25

screw gate opening .826" (21 mm)
dimensions 4.48" (113.8 mm) x 2.78" (70.6 mm)
breaking strength 6744 lbf (307 kN) NFPA L
3.7 oz (105 g)

B8 brite $23.50
B8R red $26.25
B8RC red with captive eye $29.25

quick lock gate opening .787" (20 mm)
dimensions 4.48" (113.8 mm) x 2.78" (70.6 mm)
breaking strength 6744 lbf (30 kN) NFPA L
3.92 oz (111 g)

B19 brite triple lock $24.25

triple lock gate opening .787" (20 mm)
dimensions 4.48" (113.8 mm) x 2.78" (70.6 mm)
breaking strength 6744 lbf (30 kN) NFPA L
3.99 oz (111 g)

Omega Pacific Rescue Heavy Carabiners

mafactured in the usa
ideal for rescue and industrial use
modified D for general use
captive eye for use with slings, harnesses, etc.

B6 gold $24.25
B6B black $25.50

screw gate opening .945" (24 mm)
dimensions 4.38" (111.3 mm) x 2.77" (70.4 mm)
breaking strength 11,900 lbf (53 kN)
7.4 oz (210 g)

B10 gold $31.95
B10C gold w/ captive eye $35.95

quikloc gate opening .945" (24 mm)
dimensions 4.38" (111.3 mm) x 2.77" (70.4 mm)
breaking strength 11,900 lbf (53 kN)
7.4 oz (210 g)

B12 gold $28.25
B12B black $29.50

screw gate opening 1.06" (27 mm)
dimensions 4.9" (124.5 mm) x 2.78" (70.6 mm)
breaking strength 16,185 lbf (72 kN) NFPA G
10 oz (124.5 g)

B13 gold $35.95

screw slide swing gate opening 1.42" (36 mm)
dimensions 4.9" (124.5 mm) x 2.78" (70.6 mm)
breaking strength 16,185 lbf (72 kN) NFPA G
10 oz (124.5 g)

B20 gold $36.25

triple lock gate opening .866" (22 mm)
dimensions 4.38" (111.3 mm) x 2.77" (70.4 mm)
breaking strength 11,900 lbf (53 kN) NFPA G
7.8 oz (221 g)

B23 gold $34.95

screw gate opening 1.5" (38 mm)
dimensions 6" (152.4 mm) x 3.65" (92.7 mm)
breaking strength 12,580 lbf (56 kN)
NFPA 1983-01
12.8 oz (363 g)

B26 $41.50

3-stage quick-loc gate 1.06" (27 mm)
dimensions 4.9" (124.5 mm) x 2.78" (70.6 mm)
breaking strength 16,185 lbf (72 kN)
NFPA 1983.01
11 oz (293 g)

Omega Pacific HMS Jake Carabiners

manufactured in the usa
pear shaped designed for use with munter hitch for single person load
eliminates loading on the nose
always centers belay / rappel device
for double rope rappels, neither strand is pinched on the spine
unique side swing gate for greater gate clearance

B7 pewter screw gate opening 1" (25mm)
dimension 4.5" (114.3 mm) x 3.15" (80 mm)
breaking strength 5170 lbf (23 kN)
3.5 oz (99 g) $14.95

B9 pewter quik loc gate opening .94" (24mm)
dimension 4.5" (114.3 mm) x 3.15" (80 mm)
breaking strength 5170 lbf (23 kN)
3.7 oz (105 g) $20.40

B25 pewter triple loc gate opening .9" (23mm)
dimension 4.5" (114.3 mm) x 3.15" (80 mm)
breaking strength 5170 lbf (23 kN)
3.8 oz (105 g) $23.30

Omega Pacific Jake Keylock Carabiners

manufactured in the usa
set the standard for HMS carabiners
the shape orients the load
eliminates nose loading, always centers your belay/rappel device so that in double-rope rappels, neither strand of rope is pinched on the spine
ensures a smooth, predictable rappel
equipped with a truly unique side-swing gate which provides greater gate clearance and ease of use
manual screw locking gate
gunmetal steel
gate opening 1.12"(28.5 mm)
dimensions 4.24" (107.7 mm) x 2.27" (57.7 mm)
breaking strength 4,946 lbf. (22 kN)
2.6 oz (73.7 g)

B31 screw gate $15.95
B32 auto lock $19.35

Omega Pacific Keylock Carabiners

manufactured in the usa
all the same qualities as the other 1/2" Large D carabiners but with an increased strength in the minor axis
keylock makes a smoother connection on the nose of the carabiner adding to increased strength
gate opening .86" (22mm)
MBS 16,186 lbf (72 kN)
NFPA 1983, ANSI Z.359.1
11.4 oz (323 g)

B43 Gold Quick-Loc $39.95
B45 Gold Triple Quick-Loc $43.25

Omega Pacific Steel Modified Locking D Carabiners

manufactured in the usa
1/2" steel modified D is a great handling carabiner
massive strength for general use
heat treated and plated to increase corrosion resistance
screw gate opening .866" (22 mm)
dimensions 4.46" (113.3 mm) x 2.7" (68.6 mm)
breaking strength 14,613 lbf (65 kN)
9.5 oz. (269 g)

B33 gold $24.25
B34 black $25.50

Omega Pacific Large Aluminum Locking Carabiners

manufactured in the usa
traditionally shaped
oversized for ease-of-handling
larger than normal gate opening for the fire and rescue market
easy to use with gloves
works to clear webbing, harnesses, ropes and other bulky apparatus
gate opening 1.02" (26 mm)
dimensions 4.9" (124.5 mm) x 2.83" (79.1 mm)
breaking strength 6,744 lbf (30 kN)
3.81 oz (108 g)

B35 brite $21.50
B36 black $24.95

Omega Pacific NFPA G-First Aluminum Screw Gate Carabiner

manufactured in the usa
new lightweight G-Rated aluminum carabiner
made from aircraft grade aluminum and weighing in at only 4.6 ounces
screw lock gate and a "Keylock Nose" which marries the gate and the frame of the carabiner without the traditional "notch and pin"
will not interfere with with slings, ropes and other equipment
gate opening 1.12 (28.5 mm)
outside length 5" (127 mm)
outside width 3" (76.2 mm)
breakingnstrength 9,000 lbf (40kN)
UL Certified to NFPA 1883-06
4.6 oz(130.4 g)

B37 brite $30.25
B39 black $32.35
B41 red with brite gate $32.35

Sterling Safe D Auto Locking Carabiner With Removable Captive Eye Pin

manufactured in the usa
made from lightweight aluminum
3-stage carabiner
black with a black gate
requires the user to pull down on the gate sleeve before twisting
features a removable captive eye pin allowing a rope with a sewn eye to be attached to it at any time
3.2 oz (91 g)
UL certified to NFPA 1983 - light use

C2LPASR $27.50

PMI Mate II Triple Lock Carabiner

manufactured in the usa
OSHA compliant
autolocking mechanism requires a three-step action to unlock
aluminum auto locking key gate
gate opening .945” (24 mm)
length 4.5” (114.3 mm)
width 3” (76.2 mm)
breaking strength 5,395 lbf. (24 kN)
3.2 oz. (91 g)

HD26137 $22.80

PMI Gator Steel Carabiner

manufactured in the u.k.
unigue shape gives this large steel, auto locking carabiner a large working area for multiple pieces of gear
meets OSHA requirements for auto locking carabiners
gate is opened by pulling the sleeve toward the hinge then twisting it
10.1 oz. (285 g)
gate opening .9" (23 mm)
length 4.9" (125 mm)
width 3.12" (79 mm)
breaking strength 10,165 lbf (45 kN)

HD26047 $35.42

Kong Tango Lever Action Auto Locking Aluminum Carabiner

manufactured in italy
features a unique locking device that is opened by depressing the lever with your thumb while griping the biner
when released, the lever locks the gate shut for security
ideal for fire personnel escape kits
gate opening .875" (22.2 mm)
length 5.25" (133 mm)
width 2.5" (63.5 mm)
breaking strength 7,418 lbf. (33 kN)
4.6 oz (130 g)

432375 $26.95

Omega Pacific Ladder Hooks

manufactured in the usa
extra large to fit over ladder rung, pipes, safety rails, etc.
side swing gate allows opening beyond carabiner spine
NFPA 1983-06 and ANSI / OSHA requirements

B17 gold ladder hook $51.75

screw gate opening 2.36" (60mm)
dimensions 8.8" (223.4 mm) x 4.4" (111.8 mm)
breaking strength 9217 lbf (41 kN) NFPA G
24.1 oz (683 g)

B18 gold ladder hook $54.25

quikloc gate opening 2.24" (57mm)
dimensions 8.8" (223.4 mm) x 4.4" (111.8 mm)
breaking strength 9217 lbf (41 kN) NFPA G
23.4 oz (663 g)

B22 gold scaffold hook $55.10

quikloc gate opening 2.13" (54mm)
dimensions 8.8" (223.4 mm) x 4.4" (111.8 mm)
breaking strength 9217 lbf (41 kN) NFPA G
23.9 oz (678 g)

B29 mini ladder hook $49.50
B30 mini ladder hook $53.25

shorter profile
1/2" diameter bar stock for lighter weight
side-swing gate mechanism enables gate to open beyond the carabiner spine and provide a massive gate opening
available in screw gate (B29) or 3 stage triple lock gate (B30)
dimensions 6.75" (171.4 mm) x 3.75" (95.3 mm)
B29 gate opening 1.97" (50 mm) x 6.75" (171.4 mm)
B30 gate opening 1.81" (46 mm) x 6.75" (171.4 mm)
NFPA 1983.01 standards
breaking strength 9,892 lbf (44 kN)
UL Classification G
16.1 oz. (457 g)
